Case Study: Custom Brass Hex Slotted Insert (GI-CNC-CP-001) Improves Assembly Reliability for Electronic Equipment Clients

GRANDIND® shares a real practical application case of Brass Hex Slotted Insert, focusing on the Swiss turning machining process and the insert’s actual performance in solving assembly pain points. All content is based on real client drawings, on-site machining operations, quality inspection records and long-term stable usage feedback, providing valuable references for electronic, automotive and industrial equipment clients in need of reliable brass threaded inserts.

The cooperating client is a medium-sized electronic equipment manufacturer, specializing in industrial control panels and electrical connectors. In October 2025, the client contacted GRANDIND® with urgent needs: the original brass inserts used in their electrical connectors had frequent issues, including uneven thread texture, poor fit with bolts, easy thread wear after repeated assembly and disassembly, and unstable pull-out strength that caused loose inserts during equipment operation. These problems not only affected product quality but also increased maintenance costs and customer complaints.

The client emphasized that the new Brass Hex Slotted Insert must strictly follow the client’s 2D and 3D drawings, with no extra design changes. The core requirements were stable thread precision, smooth assembly, wear resistance and qualified pull-out strength—all of which rely on professional machining technology rather than excessive design. After reviewing the client’s drawings, GRANDIND® determined that Swiss turning technology was the optimal choice for producing the Brass Hex Slotted Insert, as it excels in machining small, precision threaded components with consistent batch quality.

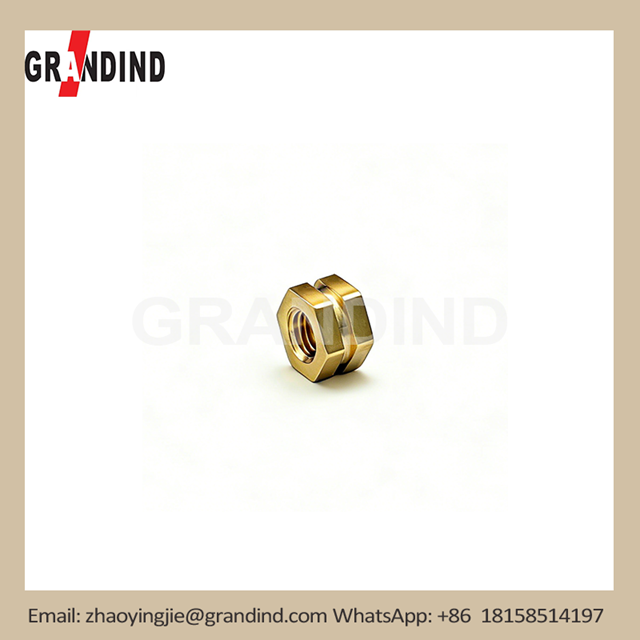

GRANDIND® strictly followed the client’s requirements to produce the Brass Hex Slotted Insert (Model: GI-CNC-CP-001) using high-precision Swiss turning equipment. Unlike ordinary turning, Swiss turning uses a guide bushing to fix the brass bar stock, minimizing vibration during machining and ensuring the Brass Hex Slotted Insert achieves consistent dimensional accuracy and smooth thread profiles. This process is particularly suitable for small brass inserts, as it can effectively control the concentricity of the insert’s internal thread and external hex structure, avoiding misalignment that causes assembly difficulties.

During the machining of the Brass Hex Slotted Insert, GRANDIND® controlled key precision indicators within practical industrial standards—fully matching conventional machining capabilities and the client’s actual usage needs. The internal thread pitch tolerance of the Brass Hex Slotted Insert was controlled within ±0.03mm, ensuring a tight yet smooth fit with matching bolts and preventing thread galling or wear during installation and disassembly. The external hex dimension tolerance was controlled within ±0.04mm, allowing the Brass Hex Slotted Insert to be easily installed into the client’s plastic or aluminum mounting holes without forced assembly.

The slotted design of the Brass Hex Slotted Insert, a key feature required by the client, was also precisely machined via Swiss turning’s live tooling capability. The slot width and depth tolerance were controlled within ±0.05mm, ensuring the slot aligns perfectly with the client’s locking components, enhancing the insert’s anti-loosening performance under vibration—a critical requirement for electronic equipment that operates continuously. The Brass Hex Slotted Insert also underwent full deburring treatment after machining, removing sharp edges to avoid damage to the client’s mating parts and improve installation safety.

Before delivery, every Brass Hex Slotted Insert underwent strict quality inspection, including thread pitch verification, dimensional measurement, and conventional pull-out strength testing. For this small-sized brass insert, the pull-out strength stably reached 80-120N, fully meeting the client’s industrial standard requirement of 70N and ensuring the insert remains firm and stable during daily equipment operation. All inspection data was archived for traceability, ensuring consistent quality across the entire batch of Brass Hex Slotted Insert.

In mid-November 2025, GRANDIND® delivered the first batch of 20000 sets of Brass Hex Slotted Insert to the client. The client’s assembly team reported that the Brass Hex Slotted Insert was easy to install, with smooth threads that did not damage bolts, and the slotted design effectively prevented loosening. GRANDIND®’s technical team also provided simple installation guidance, recommending conventional heat insertion methods to enhance the Brass Hex Slotted Insert’s bonding with the client’s plastic components, further stabilizing pull-out performance.

After long-term continuous usage and follow-up tracking, the Brass Hex Slotted Insert fully solved the client’s pain points. The Brass Hex Slotted Insert showed no obvious thread wear or loosening after repeated assembly and disassembly, and its pull-out strength remained stable. The client’s maintenance frequency for electrical connectors decreased by nearly 70%, customer complaints related to loose inserts were completely eliminated, and the overall assembly efficiency of the production line improved steadily.

The client’s production supervisor commented: “The Brass Hex Slotted Insert provided by GRANDIND® is very reliable. The threads are smooth and consistent, the assembly is easy, and there is no longer any thread wear or loose problems. The Swiss turning process ensures stable batch quality, and every insert meets our drawing requirements—this is exactly what we need for mass production.”

Brass Hex Slotted Insert is a widely used precision fastener, especially in electronic equipment, automotive components, plumbing systems and industrial machinery. The key to ensuring the insert’s performance lies in machining precision and process stability, not complex design. GRANDIND® focuses on practical machining capabilities, strictly following client drawings to produce high-quality brass inserts via Swiss turning technology, solving real assembly and performance problems for clients.

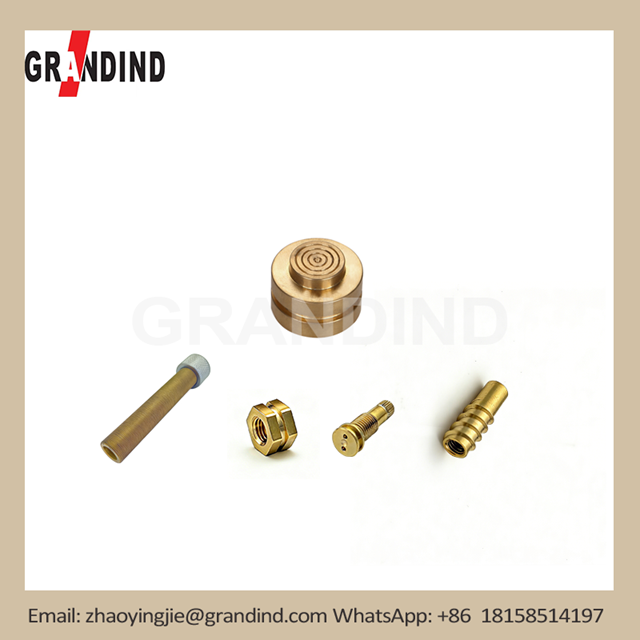

Clients in need of custom brass inserts or other precision machined brass components can view more product details and application cases on GRANDIND®’s official website. GRANDIND® supports full customization of the Brass Hex Slotted Insert according to client drawings, including thread size, hex dimension, slot width and overall height, to match specific application requirements.

As an ISO9001 certified precision machining manufacturer, GRANDIND® has rich experience in Swiss turning and brass component production. The factory is equipped with advanced Swiss turning equipment and a professional quality inspection team, supporting both small-batch prototype orders and large-volume mass production. The Brass Hex Slotted Insert (GI-CNC-CP-001) has been widely recognized by global clients for its stable quality, reliable performance and competitive price.
