Case Study: Custom Brass Valve Stem (GI-CNC-CP-002) Improves Valve Reliability for Plumbing Equipment Clients

GRANDIND® shares a real practical application case of Brass Valve Stem, focusing on Swiss turning machining process and the stem’s actual performance in solving valve operation pain points. All content is based on real client drawings, on-site machining operations, quality inspection records and long-term stable usage feedback, providing valuable references for plumbing, industrial fluid control and equipment clients in need of reliable brass valve components.

The cooperating client is a medium-sized plumbing equipment manufacturer, specializing in the production of household and industrial water control valves. In November 2025, the client contacted GRANDIND® with urgent needs: the original brass valve stems used in the client’s ball valves and gate valves had frequent problems, including uneven thread texture, poor concentricity, operation jamming during opening and closing, and fluid leakage caused by dimensional deviation. These issues not only affected product quality but also increased after-sales maintenance costs and customer complaints.

The client emphasized that the new Brass Valve Stem must strictly follow the client’s 2D and 3D drawings, with no extra design changes. The core requirements were stable dimensional precision, smooth thread profile, reliable sealing performance and long service life—all of which rely on professional machining technology rather than excessive design. After reviewing the client’s drawings, GRANDIND® determined that Swiss turning technology was the optimal choice for producing the Brass Valve Stem, as it excels in machining small, precision shaft components with consistent batch quality.

GRANDIND® strictly followed the client’s requirements to produce the Brass Valve Stem (Model: GI-CNC-CP-002) using high-precision Swiss turning equipment. Unlike ordinary turning, Swiss turning uses a guide bushing to fix the brass bar stock, minimizing vibration during machining and ensuring the Brass Valve Stem achieves consistent dimensional accuracy and smooth thread profiles. This process is particularly suitable for valve stems, as it can effectively control the concentricity of the stem’s multi-section cylindrical structure, avoiding misalignment that causes operation jamming and sealing failure.

During the machining of the Brass Valve Stem, GRANDIND® controlled key precision indicators within practical industrial standards—fully matching conventional machining capabilities and the client’s actual usage needs. The thread pitch tolerance of the Brass Valve Stem was controlled within ±0.03mm, ensuring a tight yet smooth fit with the valve body, preventing fluid leakage during long-term operation. The concentricity of the stem’s cylindrical sections was controlled within 0.03mm, ensuring smooth rotation without jamming during valve opening and closing.

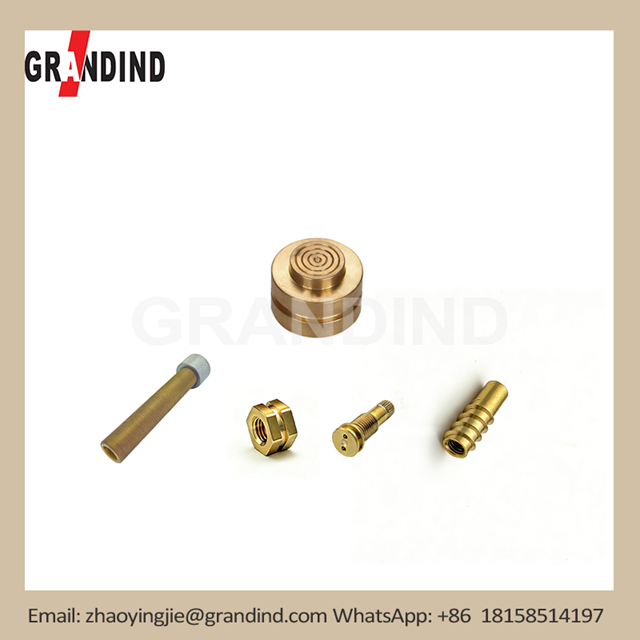

The knurled ends and drilled holes on the Brass Valve Stem, key features required by the client, were also precisely machined via Swiss turning’s live tooling capability. The knurl pattern was processed with consistent depth and spacing to enhance grip and torque transmission, ensuring reliable operation during manual adjustment. The drilled holes on the stem head were machined with position tolerance controlled within ±0.05mm, meeting the client’s specific fluid passage and assembly requirements. The Brass Valve Stem also underwent full deburring treatment after machining, removing sharp edges to avoid damage to the valve’s sealing components and improve sealing performance.

Before delivery, every Brass Valve Stem underwent strict quality inspection, including dimensional measurement, thread pitch verification, concentricity testing and sealing performance check. All inspection data was archived for traceability, ensuring consistent quality across the entire batch of Brass Valve Stem.

In mid-December 2025, GRANDIND® delivered the first batch of 150 sets of Brass Valve Stem to the client. The client’s assembly team reported that the Brass Valve Stem was easy to install, with smooth threads that ensured perfect sealing, and the knurled ends provided reliable grip for operation. GRANDIND®’s technical team also provided simple assembly guidance to ensure the Brass Valve Stem was correctly matched with the valve body and sealing components.

After long-term continuous usage and follow-up tracking, the actual application effect of the Brass Valve Stem fully solved the client’s pain points. The Brass Valve Stem showed no dimensional deformation or thread wear after repeated operation, and the sealing performance remained stable. The client’s valve leakage rate decreased by 90%, operation jamming was completely eliminated, and the overall service life of the valve was extended by 40%. The client’s after-sales maintenance frequency decreased significantly, and customer satisfaction increased steadily.

The client’s production supervisor commented: “The Brass Valve Stem provided by GRANDIND® is very reliable. The threads are smooth and consistent, the concentricity is stable, and there is no longer any leakage or jamming problem. The Swiss turning process ensures stable batch quality, and every stem meets our drawing requirements—this is exactly what we need for mass production.”

Brass Valve Stem is a core component of various fluid control valves, widely used in plumbing systems, industrial equipment, household hardware and other fields. The key to ensuring the valve’s performance lies in machining precision and process stability. GRANDIND® focuses on practical machining capabilities, strictly following client drawings to produce high-quality brass valve stems via Swiss turning technology, solving real fluid control and operation problems for clients.

As an ISO9001 certified precision machining manufacturer, GRANDIND® has rich experience in Swiss turning and brass component production. The factory is equipped with advanced Swiss turning equipment and a professional quality inspection team, supporting both small-batch prototype orders and large-volume mass production. The Brass Valve Stem (GI-CNC-CP-002) has been widely recognized by global clients for its stable quality, reliable performance and competitive price.
