Case Study: Custom Cast Steel Swing Arm Bracket (GI-CNC-CST-001) Enhances Mechanical Stability for Heavy-Duty Automation Equipment

GRANDIND® shares a practical application case of Custom Cast Steel Swing Arm Bracket, focusing on the integration of cast steel casting and CNC machining processes, and the product’s actual performance in resolving mechanical vibration and misalignment issues. All content is based on real client drawings, on-site machining records, quality inspection reports and long-term operational feedback, providing reliable references for mechanical transmission, automation equipment and heavy-duty machinery clients seeking high-strength, precision-machined components.

The cooperating client is a manufacturer of heavy-duty automation production line equipment, specializing in conveying and positioning systems for industrial parts. In December 2025, the client contacted GRANDIND® with urgent needs: the original cast steel swing arm brackets used in the client’s mechanical transmission systems had frequent problems, including uneven hole position distribution, poor surface flatness, and severe mechanical vibration during operation. These issues led to misalignment of the entire transmission mechanism, accelerated wear of connecting bearings and rods, and frequent equipment shutdowns, seriously affecting production efficiency.

The client emphasized that the new Custom Cast Steel Swing Arm Bracket must strictly follow the client’s 2D and 3D drawings, with no additional design modifications. The core requirements were stable hole position accuracy, reliable flatness, high strength and impact resistance—all of which depend on professional casting and precision machining technology rather than complex design. After reviewing the client’s drawings and technical parameters, GRANDIND® determined the optimal production process: first forming the basic shape via cast steel casting, then completing precision CNC machining to meet the client’s dimensional and assembly requirements.

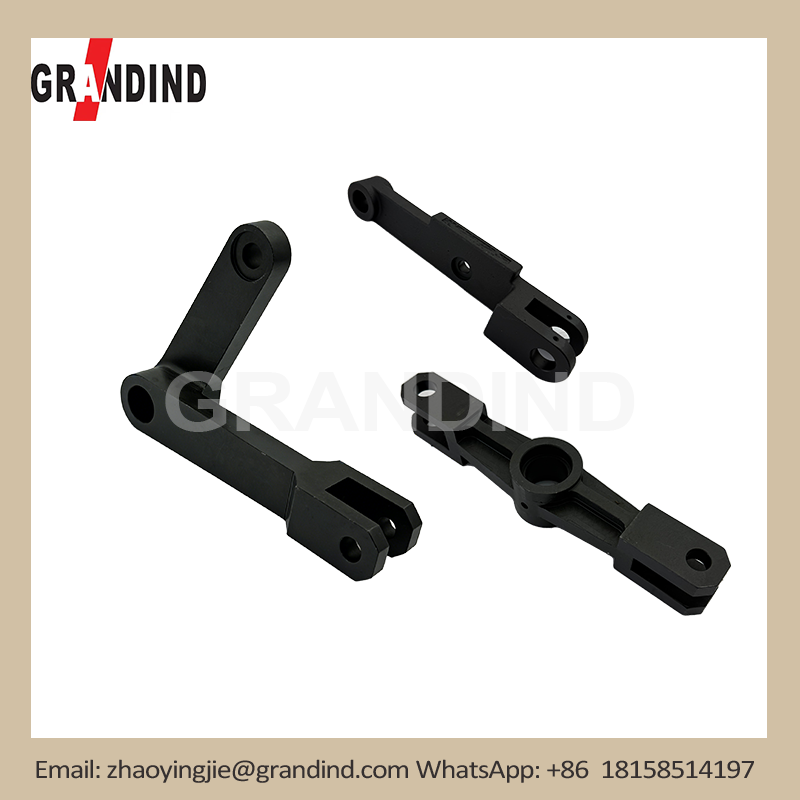

GRANDIND® strictly followed the client’s specifications to produce the Custom Cast Steel Swing Arm Bracket (Model: GI-CNC-CST-001) through a complete process combining casting and CNC machining. The raw cast steel blank was first cast to the approximate shape, ensuring the blank’s structural integrity and eliminating obvious casting defects such as air holes and cracks. The cast steel blank offers excellent tensile strength and impact resistance, laying a solid foundation for the swing arm bracket to withstand heavy loads in heavy-duty mechanical applications.

During the CNC machining stage of the Custom Cast Steel Swing Arm Bracket, GRANDIND® adopted high-precision CNC milling and drilling equipment. The machining process focused on controlling key precision indicators within practical industrial standards—fully matching conventional machining capabilities and the client’s actual operational needs. The position tolerance of all mounting holes and bores on the swing arm bracket was controlled within ±0.05mm, ensuring perfect alignment with connecting rods, bearings and other mechanical components, and avoiding misalignment that causes vibration and mechanical failure. The flatness of the mating surfaces was controlled within 0.05mm, ensuring close contact with related parts and reducing friction during movement.

The Custom Cast Steel Swing Arm Bracket features a complex structural design with multiple hole positions and connecting surfaces. During machining, GRANDIND® adopted a one-time clamping machining process for key mating surfaces to minimize cumulative errors. The CNC milling process precisely processed the irregular contour of the swing arm bracket, ensuring the contour size meets the client’s drawing requirements and improving the overall structural stability of the Custom Cast Steel Swing Arm Bracket. After machining, the swing arm bracket underwent black oxide treatment, which provides excellent corrosion resistance and wear protection, enhancing the service life of the component in industrial environments.

The production of the Custom Cast Steel Swing Arm Bracket followed strict quality control standards. Before machining, the cast steel blank underwent comprehensive material inspection to eliminate blanks with casting defects. During CNC machining, the Custom Cast Steel Swing Arm Bracket was subject to real-time dimensional detection, ensuring every hole position, surface and size meets client specifications. After machining, the swing arm bracket underwent final quality inspection, including dimensional verification, surface finish check and load-bearing capacity test. All inspection data was archived for traceability, ensuring consistent quality across the entire batch of Custom Cast Steel Swing Arm Bracket.

In mid-January 2026, GRANDIND® delivered the first batch of 120 sets of Custom Cast Steel Swing Arm Bracket to the client. The client’s assembly team reported that the swing arm bracket was easy to install, with precise hole positions that ensured perfect alignment with mechanical components, and the black oxide finish provided good corrosion protection. GRANDIND®’s technical team also provided simple assembly guidance to ensure the Custom Cast Steel Swing Arm Bracket was correctly matched with the transmission system, avoiding installation errors that affect operational performance.

After long-term continuous usage and follow-up tracking, the actual application effect of the Custom Cast Steel Swing Arm Bracket fully solved the client’s pain points. The Custom Cast Steel Swing Arm Bracket withstood heavy loads during long-term operation, with no dimensional deformation or structural damage. The mechanical vibration of the transmission system was significantly reduced, the misalignment phenomenon was completely eliminated, and the service life of related components such as bearings was extended by 35%. The client’s equipment shutdown rate caused by transmission failures decreased significantly, and production efficiency increased steadily.

The client’s technical director commented: “The Custom Cast Steel Swing Arm Bracket provided by GRANDIND® is very reliable. The machining precision meets our strict requirements, especially the hole position accuracy, which ensures the stable operation of the entire transmission system. The cast steel material provides sufficient strength to adapt to heavy-duty working conditions, and the black oxide finish enhances the corrosion resistance of the component. This is exactly the high-quality mechanical component we need for mass production.”

Custom Cast Steel Swing Arm Bracket is a core mechanical transmission component, widely used in heavy-duty automation production lines, packaging machinery, conveying equipment and other industrial fields. The performance of the swing arm bracket depends on the quality of cast steel blank and precision machining technology. GRANDIND® focuses on the integration of casting and CNC machining technology, strictly following client drawings to produce high-quality cast steel mechanical components, solving real mechanical transmission and equipment operation problems for clients.

As an ISO9001 certified precision machining manufacturer, GRANDIND® has rich experience in cast steel component production and CNC machining. The factory is equipped with advanced casting equipment and CNC machining centers, as well as a professional quality inspection team, supporting both small-batch prototype orders and large-volume mass production. The Custom Cast Steel Swing Arm Bracket (GI-CNC-CST-001) has been widely recognized by global clients for its stable quality, high strength and reliable performance.
