CNC Machined Steel Flanged Locating Shaft Pin

Steel flanged locating shaft pin is manufactured from premium solid steel bar through full CNC turning and milling processes. The entire steel flanged locating shaft pin is integrally formed without secondary assembly, ensuring high structural strength and consistent performance under repeated assembly and load conditions.

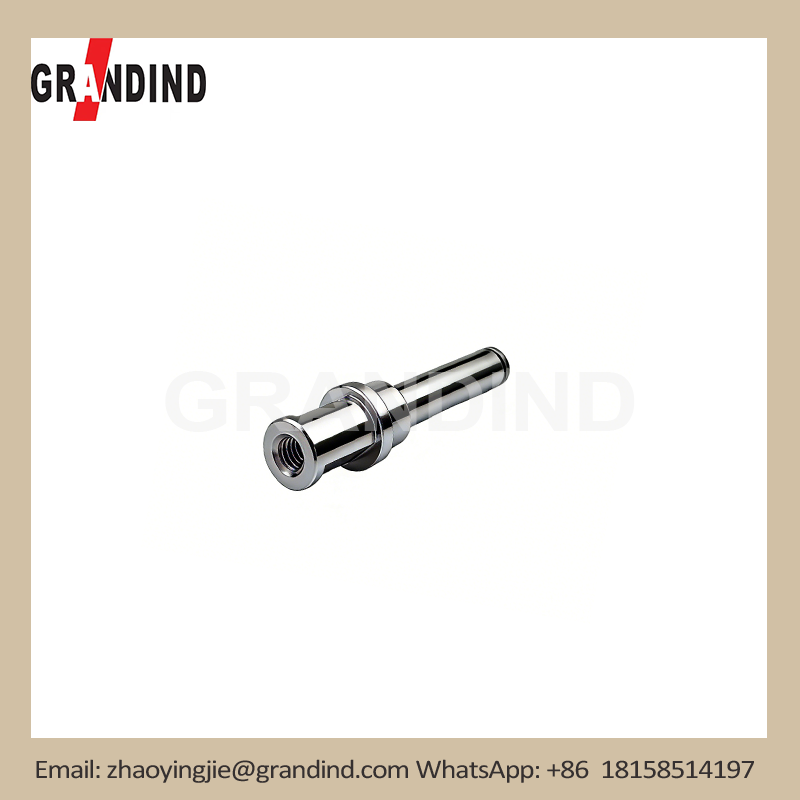

The flanged locating pin has a stepped shaft structure with a precision machined flange and internal threaded hole. Every dimension of the steel flanged locating shaft pin is controlled under tight tolerance, ensuring perfect fit and accurate positioning during mechanical assembly.

Steel material gives the steel flanged locating shaft pin excellent hardness, high wear resistance and long-term durability. The steel flanged locating shaft pin maintains stable mechanical performance in continuous industrial operation, reducing maintenance frequency and extending service life.

This steel flanged locating shaft pin is widely used as locating pin, positioning shaft and assembly component in automation machinery, industrial equipment and general mechanical assemblies. The steel flanged locating shaft pin works with other fasteners and components to ensure precise alignment and reliable connection in mechanical systems.

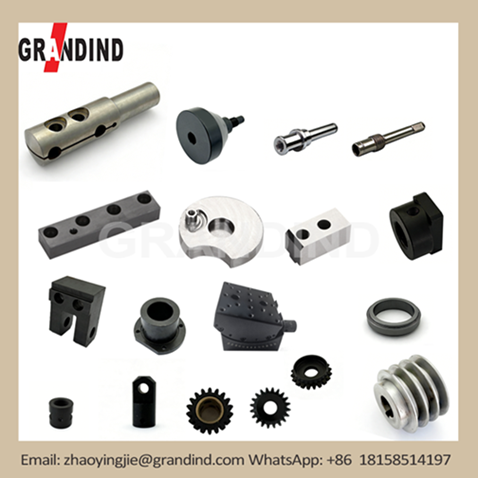

Customization service for the steel flanged locating shaft pin includes size adjustment, tolerance optimization, thread specification change and surface treatment options. Each steel flanged locating shaft pin undergoes full dimensional inspection before delivery to meet industrial quality standards. GRANDIND, with over 20 years of CNC machining experience, provides high-quality custom steel components for worldwide customers.
